Exploded Views of Front Suspension Components

Post by david58 »

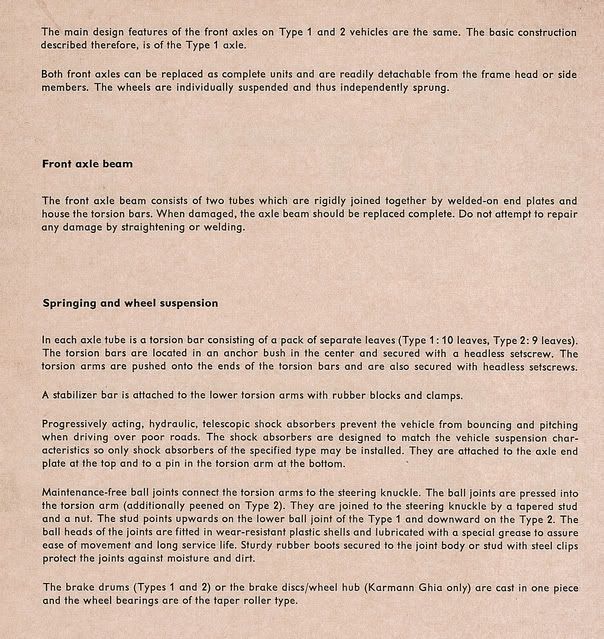

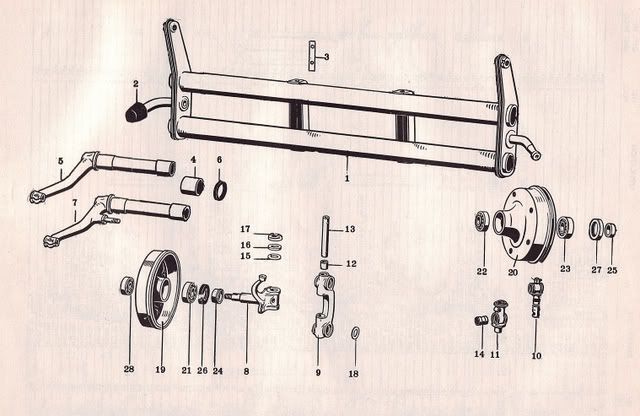

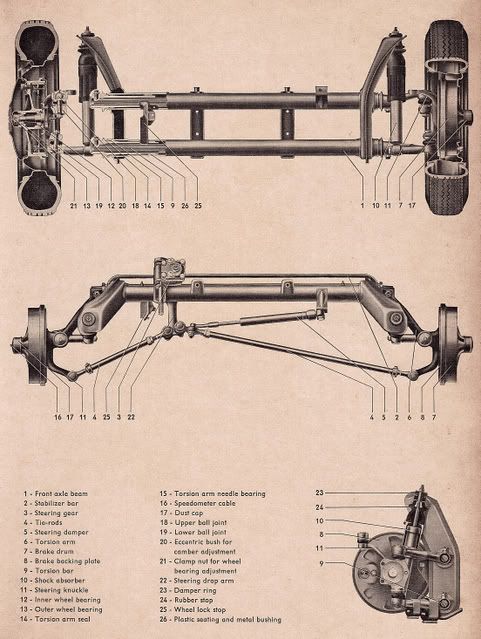

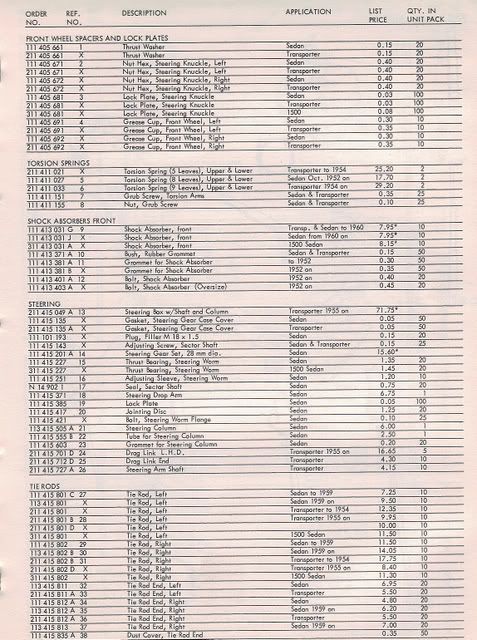

Link Pin Front Beam

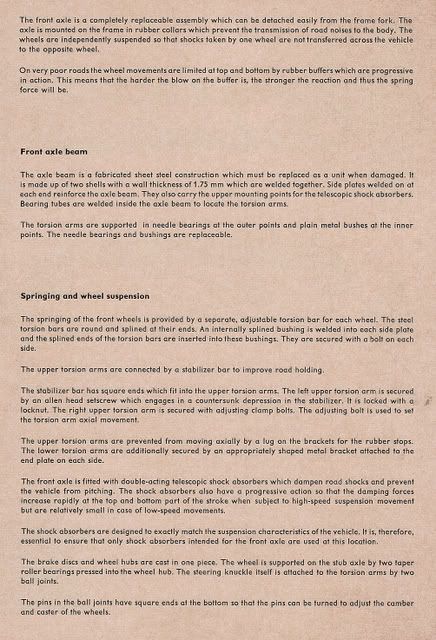

Ball Joint Front Beam

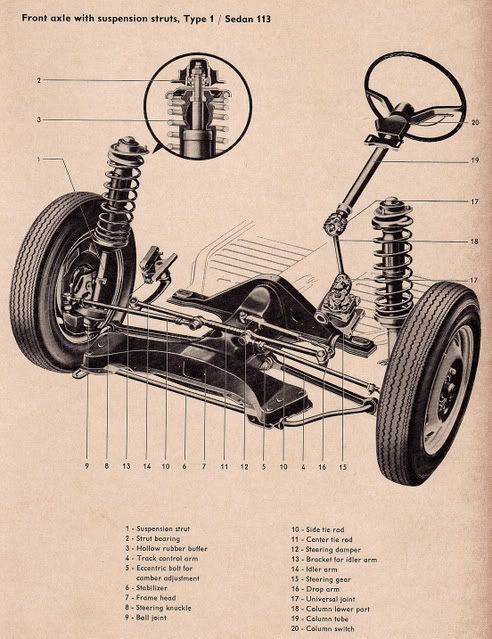

Front Axle with Suspension Struts, Type 1 / Sedan 113

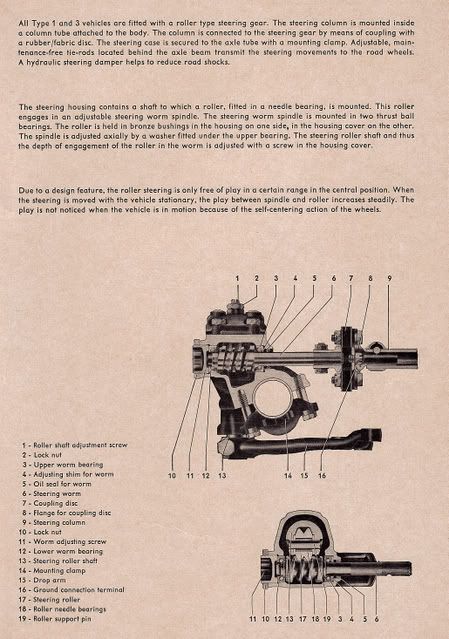

Roller Type Steering Gear Types 1 and 3
